TCB-SA Temperature Controller for Micro TECs

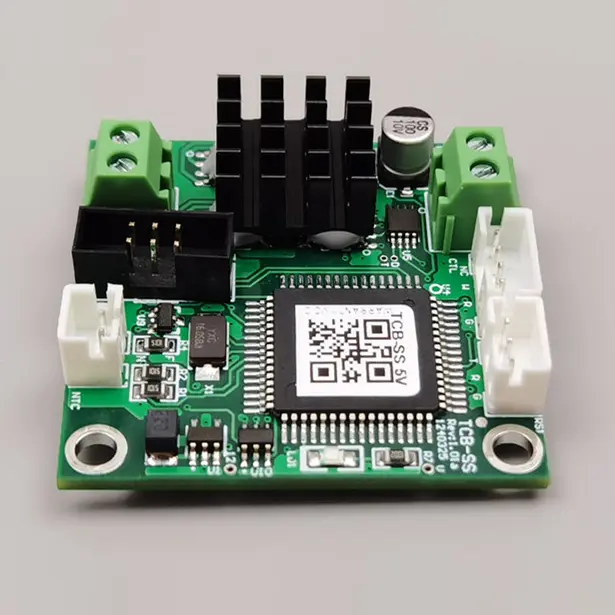

X-Meritan supplies the compact TCB-SA Temperature Controller for Micro TECs to address the stringent cooling needs of photonics and microelectronics packaging. Built around a high-end dedicated TEC management IC, this board delivers DC-driven current rather than intermittent pulses, creating a completely ripple-free thermal environment. Designed to interface natively with 10kΩ NTC thermistors, the TCB-SA maintains target temperatures with 0.01℃ precision across a broad control span from −20℃ to +100℃.

Thermal Control Challenges Solved

Traditional PWM (Pulse Width Modulation) controllers introduce aggressive voltage switching that generates thermal cycling fatigue, electrical noise, and micro-fractures in ultra-small TEC elements. The TCB-SA Temperature Controller for Micro TECs takes a fundamentally different engineering approach to protect delicate micro-coolers while locking in sub-degree stability:

Continuous DC Current Delivery: Supplies clean, continuous power to the micro-TEC. This smooths out thermal gradients, eliminates high-frequency noise in sensitive optical detectors, and dramatically extends TEC operating life.

Micro-Thermal Mass Optimization: Onboard PID algorithms are explicitly tuned for rapid thermal response in tiny heat loads, preventing severe temperature overshoots during fast setpoint ramps.

Proven Laser-Grade Reliability: Field-tested across high-density optical transceivers and industrial laser diodes, maintaining consistent calibration through millions of operating hours.

Low-Profile Footprint: A compact  form factor allows direct mounting adjacent to optical sub-assemblies, minimizing signal lead length and sensor loop delays.

Technical Specifications

Target Applications

• Laser Diode Stabilization Prevents wavelength drift and optical power fluctuation in fiber lasers, pump lasers, and gas-sensing laser diodes.

• High-Precision Optical Sensors Stabilizes photodiode arrays, spectrometers, and APDs to minimize dark current and thermal noise in low-signal optical environments.

• Semiconductor & Quantum Research Provides micro-scale spot cooling inside space-constrained laboratory test fixtures requiring sub-degree accuracy.

Manufacturing Advantage

Dedicated In-House Manufacturing: Direct oversight from SMT component placement to final thermal testing guarantees unit-to-unit consistency.

Application Engineering Support: Our team assists directly with thermal loop modeling, sensor placement optimization, and custom setpoint programming.

High Efficiency Architecture: Delivers over 90% power conversion efficiency, minimizing internal board heat generation inside sealed customer enclosures.

Frequently Asked Questions

Why is continuous power delivery critical for micro TECs compared to standard PWM switching?

Micro-scale TECs have extremely thin element cross-sections. PWM power rapidly cycles the semiconductor couples between hot and cold, causing CTE (Coefficient of Thermal Expansion) mismatch stress that degrades the junctions over time. The TCB-SA's continuous DC drive eliminates mechanical cycling fatigue completely.

Can the TCB-SA Temperature Controller for Micro TECs be pre-configured for a specific setpoint before shipping?

Yes. While the factory default target is 25℃, X-Meritan can flash customized default temperature setpoints into firmware during production according to your optical package requirements.

What temperature sensor works best with this board?

The board is factory-calibrated for standard 10kΩ NTC thermistors (B-value=3950), which offer rapid thermal response and high sensitivity across the −20∘C to +100∘C control range.

Does this controller support bidirectional heating and cooling?

Yes. The specialized driver IC natively manages current direction to provide both active cooling and heating, holding setpoint stability within ±0.01∘C regardless of ambient temperature swings.
