X-meritan manufactures Assemblies with Thermoelectric Coolers for aerospace, medical equipment, industrial electronics, communication systems, and precision temperature control applications. The assemblies integrate thermoelectric cooling elements, customized structures, electrical connections, and thermal management designs for compact devices requiring stable temperature control.
With capabilities covering thermoelectric material development, core component customization, and semiconductor cooling manufacturing, X-meritan develops integrated TEC assemblies for applications requiring precise thermal regulation, reliable heat transfer, and customized mechanical integration.
They are integrated semiconductor cooling units combining thermoelectric elements with mechanical structures, electrical interfaces, and customized packaging designs.
Compared with standalone TEC modules that require additional mounting structures and system integration, these assemblies combine cooling components and supporting structures into a unified design, making them suitable for compact electronic devices with strict space and thermal requirements.
X-meritan develops different assembly structures according to application requirements, including Assemblies with Micro-thermoelectric Coolers for compact sensors and space-limited devices, Customized Headers with Thermoelectric Coolers for laser diode housings and TO-can packaging, and integrated TEC structures for industrial, medical, communication, and research equipment.
X-meritan provides customized assembly configurations based on installation space, thermal performance requirements, and mechanical integration conditions.
|
Assembly Type |
Main Features |
Typical Applications |
|

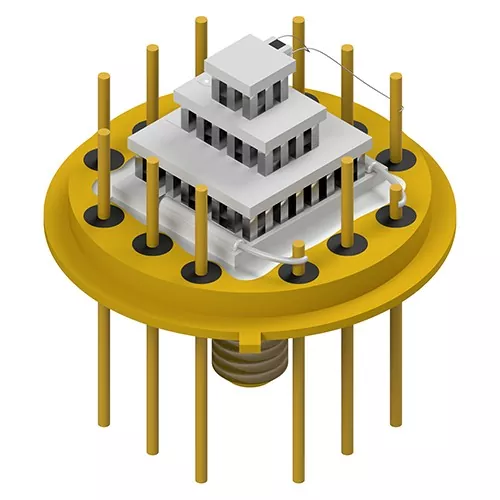

Assemblies with Micro-thermoelectric Coolers |
Designed with a miniaturized structure for limited installation space and compact thermal control systems. |
Sensors, miniaturized probes, high-density electronic devices. |
|

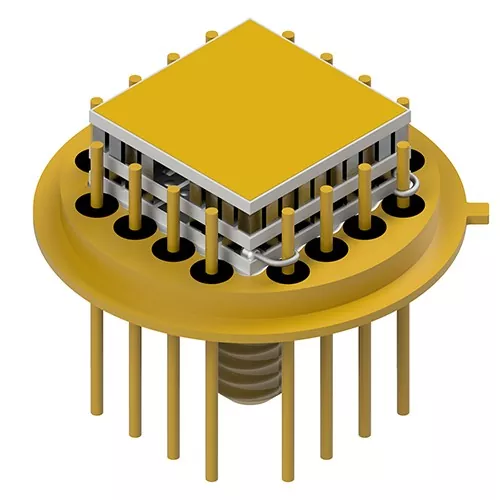

Customized Headers with Thermoelectric Coolers |
Developed for integration into laser diode housings and TO-can style packaging structures. |
Laser systems and optical communication components. |
|

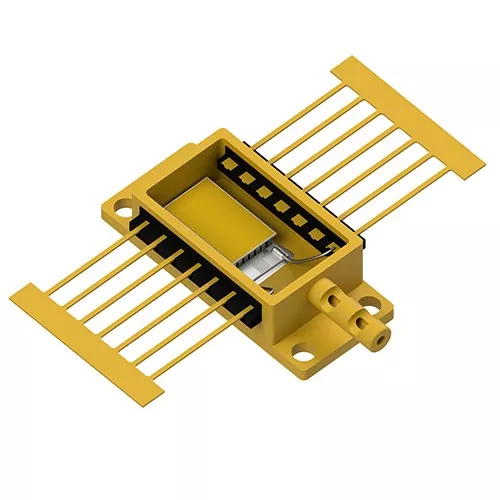

Customized TEC Assemblies |
Manufactured according to required dimensions, power specifications, and thermal performance targets. |
Industrial equipment, medical devices, and research systems. |
Compared with separate TEC components requiring additional mechanical design and installation processes, integrated assemblies reduce structural complexity by combining cooling and mounting functions into one unit.
X-meritan support thermal regulation accuracy of ±0.1°C when combined with suitable temperature control systems. This thermal stability helps maintain consistent operating conditions for temperature-sensitive components and reduces performance changes caused by temperature fluctuations.
X-meritan develops compact TEC assemblies for electronic systems where installation space is limited. The integrated structure allows cooling components to be positioned closer to heat-sensitive devices while maintaining flexibility in mechanical design.
Compared with conventional cooling structures requiring additional space for heat transfer components, thermoelectric assemblies provide a more compact integration approach for high-density electronic architectures.
Assemblies with Thermoelectric Coolers are designed for applications exposed to temperature variation, humidity, dust, and other environmental factors.
The assembly structure supports operating environments from -40°C to 85°C and incorporates IP68-standard sealing technology to protect internal components against moisture, dust, and chemical contamination. Electrical connection structures are designed to maintain stability under vibration and thermal cycling conditions.
Thermal interface performance directly affects heat transfer efficiency and operating stability. Poor contact conditions, assembly misalignment, material stress, or environmental contamination may increase thermal resistance and reduce cooling effectiveness.
X-meritan controls these risks through micron-level component placement optimized by thermal-mechanical simulation, automated welding and electrical connection processes, sealing technologies, and ISO 9001:2015-based manufacturing controls.
Repeated temperature changes can create mechanical stress because different materials expand and contract at different rates. In precision electronic systems, uncontrolled thermal cycling may affect electrical connections and long-term component stability.
X-meritan Assemblies with Thermoelectric Coolers incorporate controlled assembly processes, optimized electrical connections with reduced contact resistance, and reliability evaluations including thermal shock cycling, humidity exposure testing, and long-term performance assessment.

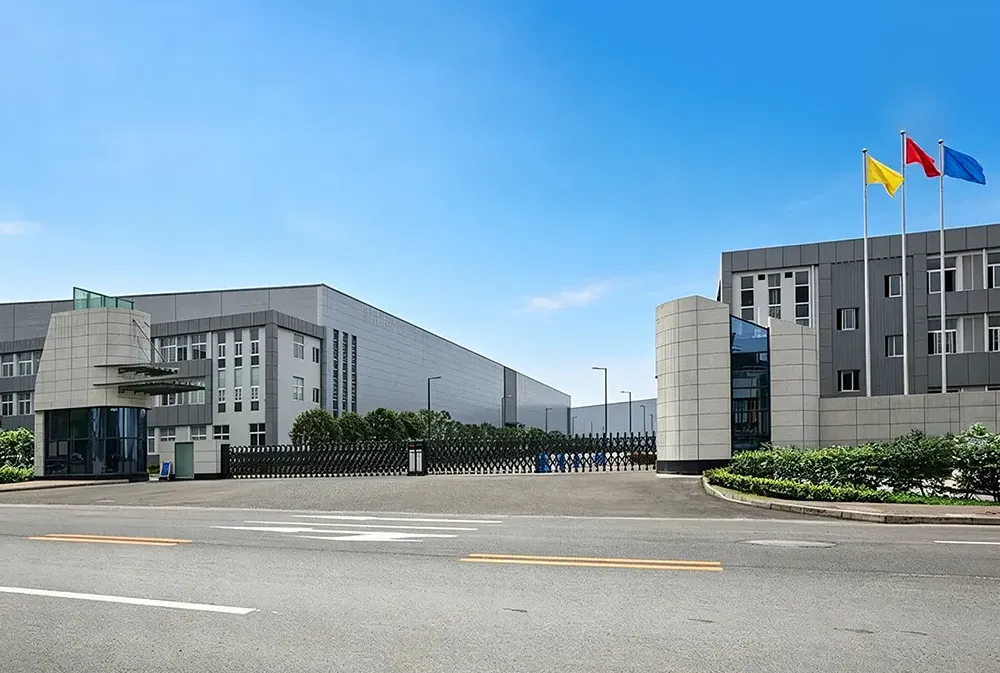

X-meritan manufacturing covers thermoelectric material development, component customization, assembly processing, and thermal solution design.
The production line includes tin dipping furnaces, vibration swing mold machines, welding equipment, ovens, dispensing machines, automatic sealing machines, cutting machines, reflow soldering equipment, and fully automatic printing machines.
Manufacturing processes follow ISO 9001:2015 quality management requirements. Quality verification includes thermal shock cycling tests, controlled humidity exposure tests, long-term reliability assessments, and electrical connection and performance inspection.
X-meritan develops TEC assemblies according to specific structural and thermal requirements, including assembly dimensions, mechanical structures, electrical connection configurations, power specifications, thermal performance targets, and integration methods.
The development process covers design evaluation, prototype optimization, and production preparation to achieve compatibility with different equipment structures.
X-meritan Assemblies with Thermoelectric Coolers are used in systems requiring semiconductor thermal management and stable temperature control.
The assemblies are applied in satellite electronic components, high-frequency communication equipment, and communication base station systems where stable temperature conditions are required for sensitive electronics.
The assemblies are used in diagnostic imaging equipment, laboratory analysis instruments, and precision medical systems requiring consistent temperature control to maintain equipment operating stability.
The assemblies are applied in high-power laser systems, industrial control equipment, and precision electronic devices where thermal management is required to reduce temperature-related performance variation.
The assemblies are used in experimental thermal control systems, high-density electronic architectures, and customized semiconductor cooling applications requiring compact and precise temperature management.
