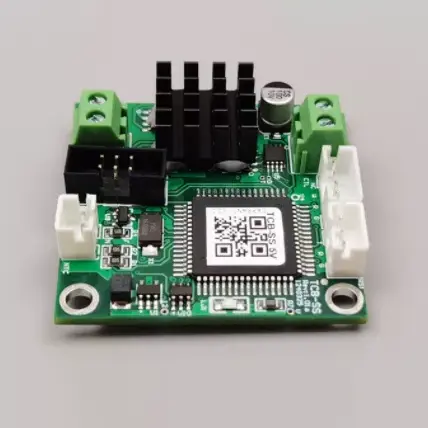

X-Meritan manufactures TCB-SS Temperature Controller with Ultra-Compact Size and Designed for Micro TECs applications where board space, temperature stability, and controlled TEC output need to be considered together. The TCB-SS integrates temperature sensing and TEC driving on a small control board, allowing a Micro TEC to be regulated through a feedback-based temperature control loop.
The controller is designed around a compact board format rather than a general-purpose temperature control architecture. It uses a 10K NTC sensor as the default temperature sensing input and supports a default TEC voltage of 4.5V with a maximum TEC current of 3A, making the board suitable for miniature thermal management systems.
|
Board supply voltage (DC) |
5V ±10% |
|
Output efficiency |
>94% |
|
TEC voltage |
4.5V (default) |
|
TEC current |
3A (maximum) |
|
Temperature control sensor |
10K NTC (default B value: 3950) |
|
Temperature control accuracy |
0.01° |
|
Set temperature accuracy |
0.01° |
|
Temperature control measurement range |
-60°C to +170°C |
|
Control temperature range |
-20°C to +100°C |
|
Default factory setting |
25°C |
10K NTC detects temperature changes and sends the signal to the controller.
The controller compares the measured temperature with the target value and regulates the Micro TEC output through PID control.
Continuous output adjusts the TEC drive during operation instead of relying only on simple on/off switching.
Measuring 4 cm × 4 cm × 1.28 cm, the TCB-SS Temperature Controller with Ultra-Compact Size and Designed for Micro TECs is designed for Micro TEC systems with limited installation space.
The controller provides 0.01°C temperature control accuracy and 0.01°C set temperature accuracy for precise thermal regulation.
With output efficiency above 94%, the controller provides efficient TEC driving in compact temperature control systems.
The default TEC voltage is 4.5V, with a maximum TEC current of 3A, for compatible Micro TEC applications.
The default sensor is a 10K NTC with a B-value of 3950, providing temperature feedback for the control loop.
The temperature control measurement range is -60°C to +170°C, while the specified control temperature range is -20°C to +100°C.
Built-in functions include overcurrent, overvoltage, temperature limiting, and TEC open/short circuit detection to monitor the controller and connected TEC during operation.
|
Item |
Standard Configuration |
|
TEC Type |
Micro TEC |
|
TEC Voltage |
4.5V Default |
|
TEC Current |
3A Maximum |
|
Temperature Sensor |
10K NTC |
|
NTC B-Value |
3950 Default |
|
Board Supply |
5V ±10% DC |
|
Control Range |
-20°C to +100°C |
Before integration, the TEC electrical requirements, NTC characteristics, target temperature, and board supply should be checked against the controller specifications.
The TCB-SS Temperature Controller with Ultra-Compact Size and Designed for Micro TECs provides compact temperature control for optical modules where stable thermal conditions are required.
It can drive a compatible Micro TEC to regulate the temperature of laser diodes in compact optical systems.
The compact controller is suitable for laboratory instruments that require Micro TEC-based temperature regulation within limited installation space.
The TCB-SS supports temperature control in compact diagnostic devices where board size and thermal regulation are important design factors.
The controller can be integrated with Micro TEC systems for temperature regulation of temperature-sensitive infrared detectors and CCD sensors.
A1: The TCB-SS Temperature Controller with Ultra-Compact Size and Designed for Micro TECs is designed for Micro TEC applications. The connected TEC should be checked against the specified 4.5V default TEC voltage and 3A maximum current.
A2: The default temperature sensing configuration is a 10K NTC with a B-value of 3950. Other sensor requirements should be confirmed during project specification.
A3: The temperature control measurement range is -60°C to +170°C, while the specified control temperature range is -20°C to +100°C. The measurement range indicates the temperature sensing capability, whereas the control range defines the specified temperature regulation range.
A4: The board supply voltage is 5V ±10% DC. The system should provide a suitable power source that remains within this specified input range.
A5: The maximum specified TEC current is 3A, with a default TEC voltage of 4.5V. The actual connected TEC should be selected according to its electrical requirements and the controller limits.
A6: The specified temperature control accuracy is 0.01°C, and the set temperature accuracy is also specified as 0.01°C.
A7: The controller includes overcurrent protection, overvoltage protection, temperature limiting, and TEC open-circuit and short-circuit detection.
