The Four-Stage Thermoelectric Coolers offered by X-Meritan factory from China are suitable for equipment requiring deep cooling. The four-stage structure is not simply an increase in the number of modules, but allows each subsequent stage to operate based on the reduced temperature created by the previous stage, continuously moving toward lower temperatures step by step. For deep cooling tasks that are difficult to achieve with conventional single-stage thermoelectric coolers, the multi-stage structure can become an important option in equipment thermal management design.
We also provide thermoelectric materials, thermoelectric coolers, and related components, and can discuss product matching and customization according to specific project requirements.

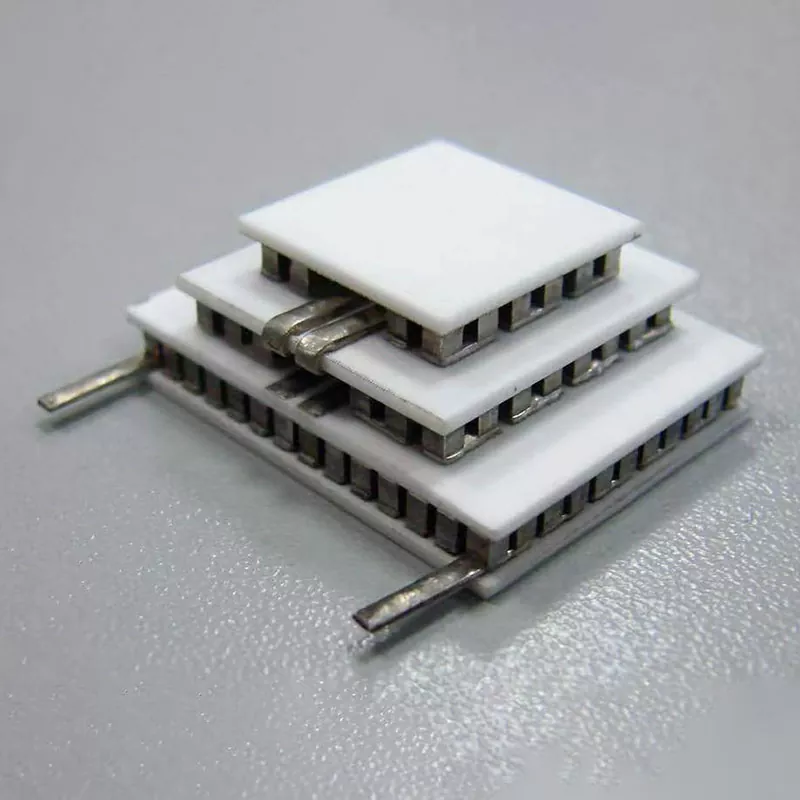

Four-Stage Thermoelectric Coolers are multi-stage thermoelectric cooling devices based on the semiconductor thermoelectric cooling principle. They achieve step-by-step temperature reduction through four continuous cooling stages.
Unlike traditional refrigeration equipment composed of compressors, refrigerants, and mechanical moving parts, they actively transfer heat from the cold side to the hot side through the thermoelectric effect. The four-stage structure allows each stage to handle part of the temperature difference formation process, ultimately extending the cooling effect to the fourth-stage cold side.
Four-Stage Thermoelectric Coolers consist of four continuously operating thermoelectric cooling layers. The previous stage reduces the operating base temperature for the next stage, and heat is gradually transferred through the multi-stage structure, allowing the fourth-stage cold side to continue working toward lower temperatures.
Unlike structures that rely on natural heat dissipation or passive thermal conduction, it actively transfers heat through the Peltier effect.
When the system is powered on, the thermoelectric module starts working. The cold side absorbs heat while the hot side releases heat, allowing it to actively participate in temperature reduction and temperature stabilization according to equipment requirements.
It adopts solid-state thermoelectric cooling technology without mechanical moving parts and does not rely on traditional refrigerants.
This structure is suitable for systems that are sensitive to mechanical vibration, have limited internal space, or require reduced mechanical refrigeration components. Without moving mechanisms such as compressors, its operating characteristics are more suitable for precision thermal management environments.
The main value of the four-stage structure is its ability to gradually increase the temperature difference, making it suitable for applications requiring lower temperature levels.
It is not only used for cooling but also for systems requiring active temperature adjustment and stabilization.
When equipment needs to maintain a specific cold-side temperature, the thermoelectric cooler can act as an execution component in the thermal management system and work together with temperature sensing and control components.
The multi-stage thermoelectric structure can achieve multi-stage cooling within a compact space without requiring large mechanical components used in traditional compression refrigeration systems.
For equipment with limited internal space that requires deep cooling, multi-stage thermoelectric structures provide significant value for system integration.
Thermoelectric cooling is based on the Peltier effect. When electricity is applied, heat transfer occurs inside the thermoelectric materials, creating a cold side and a hot side.
For a four-stage structure, the working process includes:
1. First-stage cooling: The first stage transfers heat and establishes the initial temperature difference.
2. Second-stage cooling: The second stage uses the lower temperature created by the first stage as its operating foundation and continues reducing the temperature.
3. Third-stage cooling: The temperature continues moving toward a lower level while heat is continuously transferred toward the hot side.
4. Fourth-stage cooling: The final stage continues deep cooling, making the fourth-stage cold side the lowest-temperature point of the entire multi-stage structure.
Our Four-Stage Thermoelectric Coolers can be used in professional applications such as diagnostic equipment, blood analysis equipment, and laboratory temperature control systems.
In semiconductor-related equipment, temperature control directly affects certain process environments and the operating conditions of electronic components. Our product can be applied in industrial thermal management systems that require localized deep cooling.
Multi-stage thermoelectric coolers can be used in temperature-sensitive communication equipment, optoelectronic devices, and laser-related equipment.
With solid-state thermoelectric cooling technology, it is suitable for aerospace applications.
A1: They are mainly suitable for professional equipment requiring deep cooling or precise temperature stabilization, including medical and laboratory equipment, semiconductor equipment, communication and optoelectronic equipment, aerospace-related systems, and special industrial equipment. Whether they are suitable for a specific project needs to be confirmed based on the target temperature, heat load, and hot-side heat dissipation conditions.
A2: The main difference lies in the cooling stages. A four-stage structure consists of four continuously operating thermoelectric cooling layers. Each subsequent stage works based on the lower temperature created by the previous stage, making it suitable for applications requiring larger temperature differences and deeper cooling.
A3: The product adopts solid-state thermoelectric cooling technology and does not rely on refrigerants used in traditional mechanical compression refrigeration systems.
A4: After the thermoelectric cooler absorbs heat from the cold side, the heat needs to be released through the hot side. If the hot-side temperature continues to rise, the cooling capability and temperature difference establishment of the multi-stage structure will be affected. Therefore, heat sinks, cooling methods, and installation space need to be considered together during the project design stage.
A5: Whether a standard product can be directly applied depends on the equipment requirements. We recommend providing information such as target temperature, heat load, installation dimensions, and power supply conditions before purchasing, so that a suitable product structure can be confirmed. For projects with existing drawings or samples, related materials can also be provided directly for product matching.
A6: Yes. We support product development based on customer drawings or samples. During the early communication stage, we will discuss product requirements, confirm the solution, and proceed with subsequent production.
A7: Yes. X-Meritan’s product range also includes NTC and Temperature Controller products. For projects requiring temperature detection, temperature control, and thermoelectric cooling solutions, product selection can be discussed according to the specific system requirements.
