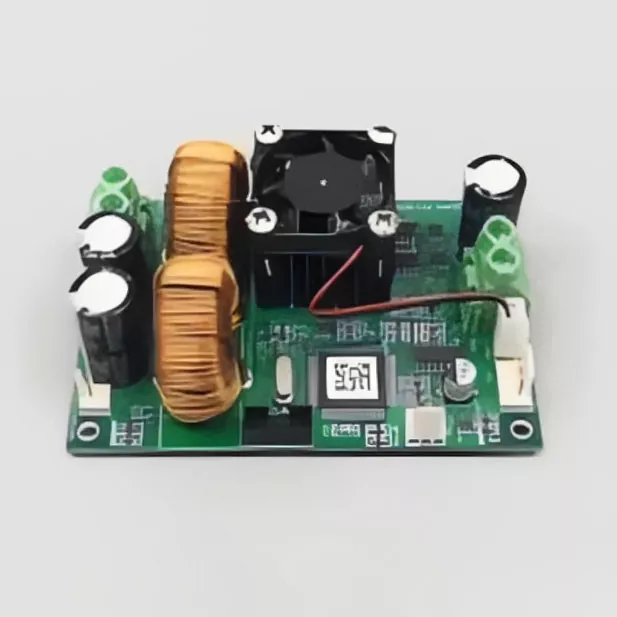

TCB-NE-AH Temperature Controller with High Precision and High Power

X-Meritan manufactures the specialized TCB-NE-AH Temperature Controller with High Precision and High Power to eliminate the drift and power bottlenecks inherent in legacy analog temperature instruments. Operating on a fully digital signal architecture, this high-power single-channel controller drives large-capacity TEC modules and heating systems directly, suppressing noise and line attenuation across high-current setups. By combining 24-bit sampling resolution with internal thermal drift management, it maintains strict  stability over long-term industrial cycles.

Technical Parameters

Key Engineering Capabilities

1.Kilowatt-Scale Single-Channel Output

Drives high-power thermal loads directly, eliminating the multi-board signal attenuation and matching issues common in multi-channel driver arrays.

2.Potentiometer-Free Digital Architecture

Replaces mechanical potentiometers with digital signal processing to eliminate component aging, vibration sensitivity, and long-term calibration drift.

3.High-Resolution Data Acquisition

Integrates a 24-bit ADC and low-drift Pt100 front-end, capturing temperature shifts down to  resolution.

4.50+ Segment Programmable Profiles

Supports complex multi-stage thermal profiles, allowing exact control over heating rates, soak times, cooling ramps, and liquid circulation loops.

5.Adaptive PID Self-Tuning

Dynamic self-tuning algorithms auto-calculate thermal inertia and adjust output parameters in real time to prevent overshoot under shifting load conditions.

6.Industrial Thermal Design

TCB-NE-AH Temperature Controller with High Precision and High Power engineered with internal airflow paths and thermal isolation to shield control electronics from internal heat buildup during maximum output operation.

Why Partner with X-Meritan?

Full-Stack In-House Production: Complete control over hardware manufacturing, SMT assembly, and multi-stage burn-in testing under ISO9001 standards.

System-Level Thermal Engineering: We optimize the controller alongside our TEC modules and liquid cold plates to ensure total system stability.

Rapid Hardware & Firmware Customization: Custom I/O configurations, communications protocols, and form factors tailored to specific OEM enclosure requirements.

Primary Application Areas

Semiconductor & Component Burn-In
Supplies stable high-power driving signals for long-term stress testing of power semiconductors, micro-processors, and circuit boards.

Aerospace & Defense Research
Delivers drift-free  regulation for vacuum chamber testing, environmental stress screening, and optical payload calibration.

Battery & New Energy Manufacturing
Manages precise thermal profiles during cell formation testing, battery pack evaluation, and thermal runaway simulation loops.

Medical Diagnostics & Chemical Processing
Controls high-capacity fluid loops and reaction vessels requiring multi-step ramp-and-soak schedules without temperature overshoot.

Frequently Asked Questions

How does the TCB-NE-AH handle signal attenuation in high-power industrial installations?

Instead of ganging multiple low-power boards together—which introduces noise and ground loops—the TCB-NE-AH uses a high-power single-channel digital drive architecture, ensuring full signal integrity and output power directly at the load.

What prevents this controller from drifting after months of continuous operation?

Analog controllers rely on mechanical potentiometers that degrade with temperature cycling and vibration. The TCB-NE-AH Temperature Controller with High Precision and High Power uses a 24-bit ADC, low-temperature-drift sensors, and digital signal processing, locking in factory calibration indefinitely.

Can this controller execute complex thermal cycles automatically?

Yes. The onboard memory stores over 50 individual segments, allowing you to program exact heating rates, target hold temperatures, and controlled cooling profiles without constant master-controller intervention.

What information is required to select or customize a TCB-NE-AH unit?

Provide your peak power requirements (voltage/current limits), total thermal load, required temperature ramp rate, sensor type, and preferred digital communication protocol.
