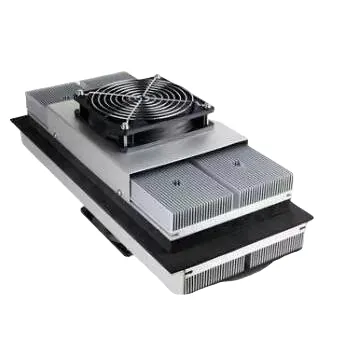

X-Meritan manufactures specialized Direct-to-Air Thermoelectric Cooler Assemblies to resolve thermal bottlenecks in compact industrial enclosures and sensitive equipment. Integrating high-performance Peltier modules, custom cold plates, heat sinks, and fans into a single solid-state sub-assembly, this solution provides direct spot cooling without organic glues or fluid loops. It protects laser diodes, medical diagnostic tools, and telecom electronics from mechanical vibration, overheating, and performance degradation.
Direct-to-Air Thermoelectric Cooler Assemblies use the Peltier effect to drive heat away from a target mounting surface and dissipate it into the surrounding environment.
Thermal Path:
Target Heat Source → Cold-Side Plate/Heat Sink → TEC Module → Hot-Side Radiator → Exhaust Fan → Ambient Air
When DC power is applied, heat absorbed at the cold plate moves across the semiconductor elements to the hot-side radiator. The hot-side fan continuously clears waste heat into ambient air, while an optional cold-side fan circulates chilled air inside the enclosure. Overall performance depends on heat load (Qmax), target temperature differential (ΔTmax), input current (Imax), and ambient heat sinking efficiency.
Direct Surface-to-Air Thermal Transfer: Absorbs heat directly from cold-side mounting surfaces and exhausts it into ambient air via forced-convection heat sinks.
Solid-State Reliability: Eliminates compressors, refrigerant loops, and moving mechanical parts (except fans) for silent, vibration-free operation.
Rapid Thermal Response: Enables instantaneous heating/cooling switching and fine temperature regulation by adjusting input DC current.
Inert Environment Assembly: Vacuum soldering and inert-atmosphere packaging prevent internal oxidation, outgassing, and thermal degradation.
Compact & Rugged Footprint: Easily integrates into space-constrained housings, outdoor telecom cabinets, and portable diagnostic units.
Engineered to Order: Cold plate geometry, fan configurations, operating voltages, and thermal capacities match specific enclosure designs.
Precision Electronic Enclosures Protects sensitive control electronics, power supplies, and automation modules from thermal overload in sealed housings.
Medical Diagnostic Equipment Direct-to-Air Thermoelectric Cooler Assemblies provides stable, vibration-free thermal control for clinical analyzers, medical imaging components, and temperature-sensitive reagents.
Optical & Laser Systems Maintains fixed temperatures for high-power laser diodes and optical sensors to eliminate wavelength drift and signal distortion.
Telecommunications Hardware Ensures continuous cooling for remote outdoor telecom cabinets and base stations where compressor maintenance is impractical.
1. Cooling Capacity (Qmax): Single-stage or multi-stage TEC configurations engineered to match target heat loads.
2. Cold Plate Interfaces: Custom mounting hole patterns, surface flatness specs, and direct-attach cold block dimensions.
3. Air-Side Dissipation: Custom heat sink extrusion profiles, heat pipe integration, and high-CFM/waterproof fan selection.
4. Electrical Parameters: Tailored operating voltages (12V, 24V, 48V DC), maximum current limits (Imax), and integrated thermistors/NTC sensors.
5. Environmental Protection: Optional IP-rated fans, conformal coatings, and anti-corrosion surface treatments for harsh outdoor environments.
In-House Manufacturing Control: Full oversight from semiconductor testing to final assembly, vacuum soldering, and hermetic sealing.
Strict Quality Standards: 100% of assemblies undergo rigorous AC-resistance (Rac), thermal conductivity, and Seebeck coefficient testing.
Advanced Material Synergy: Powered by in-house high-strength extruded thermoelectric materials for superior thermal efficiency and long operational life.
Prototype to Volume Production: Complete technical support from initial thermal simulation and CAD layout to volume manufacturing.
It is a solid-state thermal management unit that uses Peltier modules to pull heat directly from a solid surface or cold plate and exhaust it into the surrounding air using an air-cooled heat sink and fan.
Direct-to-air assemblies are ideal when the heat source can be mounted directly onto a cold plate or when installing liquid loops, pumps, and tubing is impractical due to space, weight, or maintenance constraints.
Yes. By reversing the polarity of the applied DC current, the thermoelectric module reverses the direction of heat flow, enabling seamless switching between active heating and cooling.
To determine the optimal configuration, provide the target heat load (Qc), required temperature differential (ΔT), maximum ambient temperature, available installation space/CAD constraints, and preferred DC voltage.
