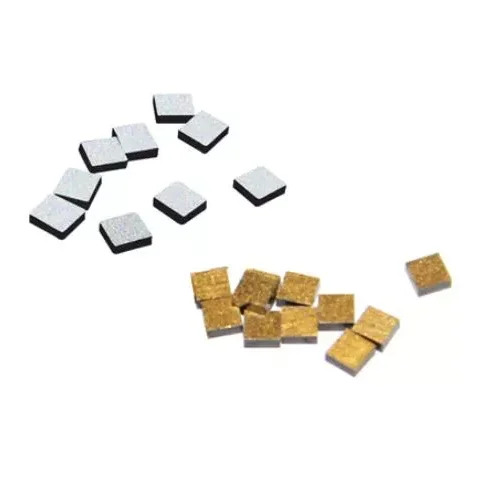

X-Meritan provides professional NTC thermistor solutions with manufacturing experience in temperature sensing components. As a specialized manufacturer, X-Meritan develops the Epoxy-Encapsulated NTC Thermistor Sensor by combining semiconductor sensing technology with epoxy resin encapsulation, achieving stable electrical performance and dependable temperature response. The products are produced under ISO9001:2015 and IATF16949:2016 quality management systems to support consistent performance in different electronic applications.
The NTC element provides accurate resistance changes when temperature varies, allowing electronic systems to achieve effective temperature monitoring.
The epoxy resin encapsulation improves insulation performance and helps protect the sensing element from moisture and environmental influence.
The component maintains consistent resistance performance, supporting reliable temperature measurement in different equipment.
Different resistance values and B values are available to meet different circuit designs and temperature control requirements.
|
Model |
Resistance R25 (kΩ) |
B Value (25/50℃) |
Rated Power (mW) |
Dissipation Factor (mW/℃) |
Thermal Time Constant (s) |
|
AT202□3950A |
2 |
3950 |
≈150 |
≈1.5 |
≈10 |
|
AT502□3470A |
5 |
3470 |
≈150 |
≈1.5 |
≈10 |
|
AT103□3435B |
10 |
3435 (25/85℃) |
≈150 |
≈1.5 |
≈10 |
|
AT103□3950A |
10 |
3950 |
≈150 |
≈1.5 |
≈10 |
|
AT303□3950A |
30 |
3950 |
≈150 |
≈1.5 |
≈10 |
|
AT104□3950A |
100 |
3950 |
≈150 |
≈1.5 |
≈10 |
|
AT104□4100A |
100 |
4100 |
≈150 |
≈1.5 |
≈10 |
NTC thermistors work based on the negative temperature coefficient principle. The Epoxy-Encapsulated NTC Thermistor Sensor detects temperature changes through resistance variation. When temperature increases, the resistance value decreases according to the characteristics of the semiconductor material, allowing control circuits to provide corresponding monitoring or protection functions.
The sensing element inside the component provides a sensitive response to temperature fluctuations. The epoxy encapsulation protects the internal structure while maintaining electrical insulation and stable operation during regular use.
The compact structure and stable temperature response make this component suitable for various electronic temperature monitoring applications.
1. Household Appliances Used in air conditioners, refrigerators and water heaters for temperature detection and control.
2. Power Electronics Applied in chargers and UPS systems to monitor abnormal heat conditions and support thermal protection.
3. Electronic Equipment Used in devices such as computer motherboards and other electronic control systems requiring temperature feedback.
4. Industrial Equipment Suitable for monitoring thermal conditions of equipment components and improving operating reliability.
|
Item |
NTC Thermistor |
PTC Thermistor |
|
Resistance Change |
Resistance decreases when temperature increases |
Resistance increases when temperature increases |
|
Main Function |
Used for continuous temperature measurement and monitoring |
Commonly used for switching protection and current limitation |
|
Temperature Response |
Provides high sensitivity for temperature detection |
Provides rapid resistance increase at specific temperature points |
X-Meritan focuses on the development and manufacturing of thermistor components with professional production capability and quality control systems. The company follows ISO9001:2015 and IATF16949:2016 standards, with UL and CQC certifications supporting product safety and reliability requirements.
1. Manufacturing Experience X-Meritan has experience in NTC component production and epoxy packaging technology, supporting stable product performance.
2. Quality Management System Strict production management and inspection procedures help maintain consistent quality throughout manufacturing.
3. Technical Assistance Professional technical support is available for product selection and application matching.
1. Professional Component Manufacturing X-Meritan specializes in NTC thermistor products and supports different resistance values, B values and configuration requirements for the Epoxy-Encapsulated NTC Thermistor Sensor.
2. Certified Quality Control Production follows ISO9001:2015 and IATF16949:2016 quality management systems, with UL and CQC certifications supporting product reliability.
3. Application-Oriented Support Technical teams provide assistance according to different temperature sensing requirements and equipment conditions.
A: It detects temperature changes through resistance variation and provides temperature signals for electronic control systems.
A: Epoxy encapsulation improves insulation performance and provides protection against moisture and environmental influence. It is suitable for temperature sensing components such as the Epoxy-Encapsulated NTC Thermistor Sensor, helping maintain stable operation in electronic applications.
A: Yes. Different resistance values and B values are available according to application requirements.
A: Yes. Product parameters such as resistance value and configuration can be adjusted according to application needs.
A: MOQ depends on product model, order quantity and customization requirements. Specific details can be confirmed according to the project.
A: Delivery time depends on product specifications, quantity and production schedule. Standard products and customized orders will be arranged based on actual requirements.
