For applications in fiber optic communications, medical equipment, automotive electronics, laboratory instruments and other precision systems, the choice of TEC configuration can directly affect cooling performance and overall system efficiency. X-Meritan supports series, parallel and mixed series-parallel configurations, as well as customized solutions developed around customer drawings, samples and application conditions.
A thermoelectric cooling system does not always have a one-module solution. When the required cooling capacity increases or the available power supply and installation space become more demanding, several TE coolers may need to work together.
The way these coolers are arranged becomes an important part of the system design.

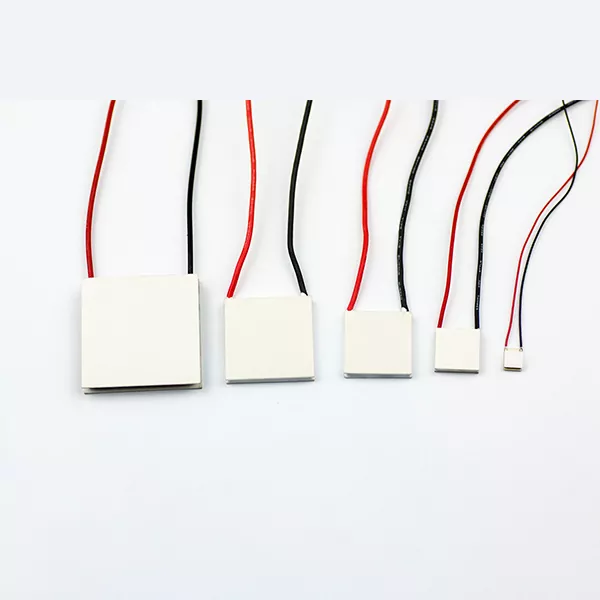

X-Meritan General TE Coolers with Serial or Parallel Connection for Special Applications can be configured in series or parallel, allowing engineers to select a suitable arrangement according to the required heat transfer performance, flow conditions, pressure drop and system capacity. For applications with more complicated requirements, a mixed configuration can also be considered.
Rather than treating the TEC module as an isolated component, X-Meritan looks at how the cooler works within the complete thermal management system.
The difference between series and parallel configuration is mainly related to how the cooling system handles the flow and distributes the thermal load.
With a series arrangement, the cooling medium passes through the TE coolers one after another. This creates a relatively concentrated flow path and can provide a higher flow velocity through the cooling channels.
This configuration can be useful when the application has a controlled flow rate and requires effective heat transfer within a compact system. The continuous flow path also makes the flow distribution relatively straightforward.
The trade-off is pressure drop. As more coolers are connected in sequence, the total flow resistance increases. For systems requiring a high flow rate, this may result in greater pumping requirements and higher energy consumption.
In a parallel arrangement, the flow is divided between multiple TE coolers instead of passing through every cooler sequentially.
This reduces the flow path of each branch and can help lower the overall pressure drop. It makes parallel configuration particularly useful when the system requires a larger flow rate or when reducing pumping energy is an important consideration.
The main challenge is flow distribution. If the branches are not properly designed, different coolers may receive different flow rates, which can affect the consistency of thermal performance.
For this reason, the choice between series and parallel should not be based on cooling capacity alone. The hydraulic conditions and complete system design also need to be considered.
|
Configuration |
Flow Path |
Heat Transfer Characteristics |
Pressure Drop |
Typical Requirement |
|
Series |
Cooling medium passes through each cooler sequentially |
Higher flow velocity can support effective heat transfer |
Increases as more modules are connected |
Controlled-flow and compact thermal systems |
|
Parallel |
Flow is divided between multiple coolers |
Performance depends on balanced flow distribution |
Generally lower than an equivalent series arrangement |
High-flow and larger thermal management systems |
|
Mixed Series-Parallel |
Combination of sequential and divided flow paths |
Can balance heat transfer and flow requirements |
Can be optimized according to system design |
Complex or highly customized systems |
In fiber optic communication equipment, our General TE Coolers with Serial or Parallel Connection for Special Applications can be used where temperature stability is important for optical components and laser-related devices. In these systems, compact dimensions and precise thermal control are often more important than conventional refrigeration capacity.
For medical and industrial equipment, TEC cooling can provide localized temperature control for temperature-sensitive components and precision instruments. The ability to customize the configuration is particularly useful when the available installation space is limited.
The same principle applies to automotive electronics and LiDAR-related equipment, where electronic and optical components may need stable operating temperatures within a compact system. For laboratory and research equipment, TEC technology offers another practical approach to controlled and localized temperature management.
Some thermal management systems cannot be properly addressed with a standard TEC module.
X-Meritan can work from customer drawings, samples or application specifications to evaluate the required TE cooler configuration. Depending on the project, the solution may use a series arrangement, a parallel arrangement, or a combination of both.
During the development stage, factors such as cooling capacity, operating conditions, module dimensions, flow requirements and installation limitations can be considered together. After the configuration is confirmed, samples can be produced for customer evaluation before moving into volume production.
This approach is particularly suitable for OEM projects and equipment manufacturers developing specialized thermal management systems.
A series configuration sends the cooling medium through multiple TE coolers sequentially, while a parallel configuration divides the flow among different coolers. Series arrangements can provide a more concentrated flow path but may produce higher pressure drop. Parallel arrangements generally reduce flow resistance but require proper flow balancing.
A mixed configuration can be considered when the system needs to balance heat transfer performance, flow rate and pressure drop. By combining parallel and series sections, the overall cooling system can be adapted more precisely to complex operating conditions.
Yes. X-Meritan can develop TE cooler configurations based on customer drawings, samples and application requirements, including projects requiring specific dimensions or series-parallel arrangements.
Cooling requirements, operating temperature, required temperature difference, voltage, current, flow conditions, installation space and heat dissipation conditions are useful starting points. More detailed application information allows X-Meritan to evaluate the configuration more accurately.
Yes. Thermoelectric cooling is suitable for applications requiring localized and stable temperature control of optical and electronic components. X-Meritan's solutions can be adapted to specific space and thermal requirements.
