If you are looking for high-quality, advanced Standard General TE Coolers for Domestic Applications use, consider X-Meritan as your supplier. Our products offer quiet, environmentally friendly, and long-life cooling and heating solutions. If you have other requirements, please provide product drawings specifying installation space, electrical requirements, and actual temperature control needs; we will provide selection and technical support.

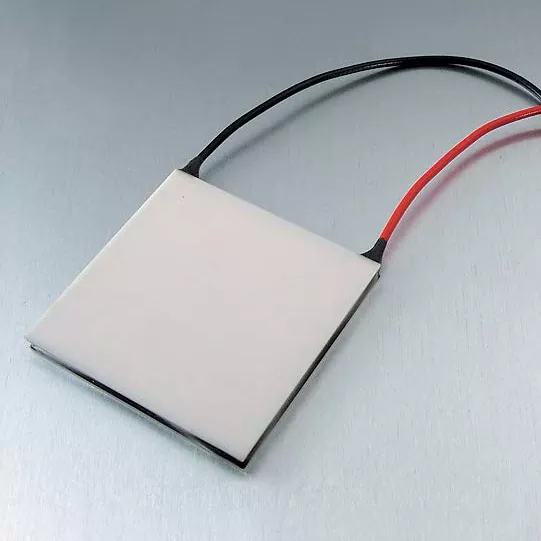

Standard General TE Coolers for Domestic Applications are high-precision solid-state cooling devices based on the Peltier effect. They meet the cooling needs of everyday consumer and household devices, offering compact size, quiet operation, and high-precision temperature control.
Unlike traditional compressor cooling, this series of components requires no chemical refrigerant and has no moving mechanical parts. It achieves rapid heat transfer and precise temperature control using only direct current.
It is suitable for smart homes, personal care products, small consumer electronics, and household dual-temperature (heating and cooling) devices.

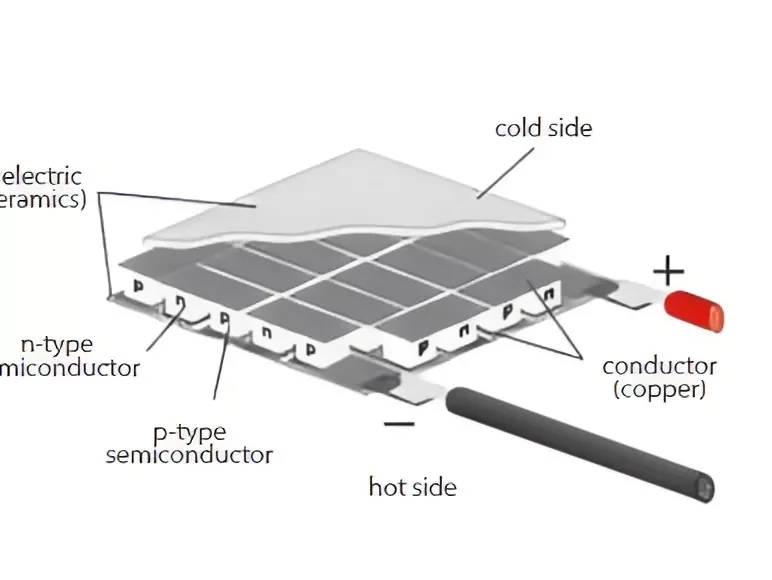

Standard General TE Coolers for Domestic Applications operate based on the Peltier effect. When direct current passes through a thermocouple composed of two different semiconductor materials, one end absorbs heat, and the other end releases heat.
Core Working Logic:
1. Cooling Mode: When current flows in the forward direction, the cold end actively absorbs heat from the target device, while the hot end dissipates the heat through the cooling system.
2. Heating Mode: By changing the direction of the current, the functions of the cold and hot ends are interchanged, achieving rapid heating.
3. Precise Temperature Control: By adjusting the current magnitude, continuous and precise temperature control can be achieved.
Standard General TE Coolers for Domestic Applications use no compressor, motor, or circulation piping, resulting in zero wear, noise, and vibration during operation.
Under standard operating conditions, it can operate continuously for tens of thousands of hours.
The product instantly cools/heats upon power-up. Combined with PWM drive and a temperature sensor, it achieves high-precision temperature control of ±0.1°C, suitable for temperature-sensitive equipment.
No additional heating wires or piping are required. Switching the direction of DC power via an H-bridge circuit achieves the function of cooling to heating.
With a module thickness of only 2-5mm, it is unaffected by gravity and maintains stable performance whether placed flat, on its side, or upside down, making it suitable for portable devices and automotive applications.
It does not use media that easily deplete the ozone layer or contribute to the greenhouse effect, such as Freon, complying with global environmental regulations and EU RoHS/REACH standards.
Driven by a safe voltage of 3.7-24V, it improves the electrical safety of household and personal contact products.
1. Household Small Refrigeration Equipment: Small electronic refrigerators, small beverage cooling devices, household food preservation equipment, small cosmetic refrigerators
2. Portable Temperature Control Equipment: Portable refrigerators, vehicle-mounted small refrigeration equipment, outdoor portable temperature control equipment, personal cooling equipment, small mobile insulation/cooling equipment
3. Household Beauty and Care Equipment: Household beauty devices, skin care equipment, localized cooling devices, household hot and cold care equipment, small beauty electronic devices
4. Heat Dissipation for Household Electronic Equipment: Small electronic instruments, household smart devices, high-heat electronic modules, small optoelectronic devices, temperature control of localized electronic components
5. Small Beverage Temperature Control Equipment: Household beverage cooling devices, small beverage refrigeration equipment, portable beverage coolers, small water temperature control equipment
6. Household Food Temperature Control Equipment: Small food refrigeration, specific food insulation, small storage box temperature control, portable food temperature control equipment
|
Comparison Dimensions |
Traditional Compressor Refrigeration |
Standard TEC components on the market |
X-Meritan Standard General TE Coolers for Domestic Applications |
|
Volume and Weight |
Large and heavy |
Medium-end quality |
Ultra-thin miniaturization, high integration |
|
Noise and Vibration |
Significant mechanical vibration and noise |
Quiet operation |
Zero noise, anti-vibration, and packaged to prevent moisture |
|
Temperature Control Accuracy |
±1~±2°C |
±0.5°C |
±0.1°C level precision control |
|
Customization and Service |
Difficult to do small-batch customization |
Standard products only |
Support drawing/sample development and send samples before mass shipment |
|
Quality Assurance |
Relying on mechanical seals |
Quality varies |
Full-process quality control and compensation for quality problems |
A: If you experience a decrease in cooling performance, we recommend checking the following factors:
1. Dust buildup on the heatsink: Reduced heat dissipation efficiency at the hot end leads to increased hot-end temperature and decreased cooling capacity.
2. Drying/cracking of thermal grease: Increased contact thermal resistance.
3. Insufficient heat dissipation at the hot end: The heatsink is too small or the fan airflow is insufficient.
We recommend regularly cleaning the heatsink and checking the condition of the thermal grease. The thermal grease thickness should be controlled between 0.1 and 0.2 mm.
A: Yes, you can place the hot end of the upper cooling coil against the cold end of the lower cooling coil to achieve a larger temperature difference (ΔT).
However, please note that stacking requires a significantly increased power supply, and the heat dissipation requirements at the hot end will increase exponentially.
X-Meritan's engineering team can provide you with thermodynamic simulation and selection support for multi-level stacking.
A: Yes. X-Meritan possesses full-chain capabilities, from substrate development and device manufacturing to system integration.
In addition to standardized products, we can perform customized development based on customers' specific drawings, samples, or special performance requirements.
