Sensors used in optical measurement, medical diagnostics, environmental monitoring, and precision instruments can be affected by temperature changes. X-Meritan develops compact thermoelectric cooling solutions based on the Peltier effect. When direct current passes through N-type and P-type semiconductor pairs, heat is absorbed on one side and released on the other. By adjusting the current, the system can actively regulate the sensor temperature without compressors or refrigerant circuits.

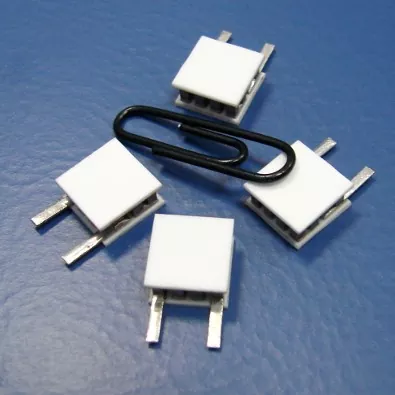

The Micro Thermoelectric Coolers for Sensors are suitable for compact sensor assemblies used in optical detection systems, medical instruments, spectrometers, astronomical equipment, and precision measurement devices.
The Micro Thermoelectric Coolers for Sensors can be used in optical detectors and communication equipment, astronomical observation systems, medical testing instruments, environmental monitoring devices, spectrometers and analytical instruments, laboratory equipment, and precision measurement systems.
These applications often require compact size, localized cooling, and stable sensor temperature.
In our use, routine maintenance is simple, but the cooling assembly still needs regular checks. We keep the hot-side heat sink clean and unobstructed so heat can discharge properly. We also inspect wiring terminals for looseness, oxidation, or higher contact resistance.
The thermal interface should stay clean and evenly contacted. If the thermal pad or grease ages, gets contaminated, or loses contact pressure, cooling performance will drop. Airflow, fan condition, enclosure space, and ambient temperature should also be checked for stable long-term heat dissipation.
When selecting a thermoelectric module, we first confirm the sensor heat load, target temperature, ambient temperature, installation space, power budget, and temperature stability requirement.
The module voltage and current must match the controller and power supply. For portable or battery-powered equipment, we pay extra attention to power consumption and operating time.
We also review module size, thermal interface, heat sink design, airflow method, operating duration, and working environment. Based on these details, X-Meritan can help choose a suitable configuration for the sensor assembly.
We operate our own production base and focus on thermoelectric materials, chips, and cooling modules. From material selection to semiconductor processing and module assembly, we control key production steps to keep quality and batch consistency stable.
Micro Thermoelectric Coolers for Sensors are used in optical communication, automotive radar, university laboratories, and other precision cooling fields. At present, X-Meritan products account for about 55% of the European market and around 30% of the North American and Southeast Asian markets combined.
For OEM and industrial customers, our team helps confirm heat load, target temperature, voltage, current, size limits, and temperature stability requirements before selection.
Key parameters include sensor heat load, target temperature, ambient temperature, installation space, temperature stability, power supply, and hot-side heat dissipation.
Passive cooling is simpler and does not require electrical power, but it cannot actively cool below ambient temperature. Thermoelectric cooling requires power and a suitable heat sink but provides active temperature control.
Compressor systems provide higher cooling capacity but require more space and mechanical components. Thermoelectric modules are more compact, produce less mechanical vibration, and are easier to control electronically, making them suitable for localized and moderate cooling loads.
Yes. The module can be integrated with a temperature sensor and electronic controller for closed-loop temperature regulation.
Use an appropriately sized hot-side heat sink, minimize thermal interface resistance, and match the module's operating current and semiconductor configuration to the actual heat load.
No. The thermoelectric element has no mechanical moving parts. Regular inspection of electrical connections, thermal interfaces, airflow, and hot-side heat dissipation is still recommended.
They are commonly used in optical sensors, astronomical detectors, medical testing instruments, environmental monitoring equipment, analytical instruments, laboratory devices, and precision measurement systems.
Yes. For OEM Micro Thermoelectric Coolers for Sensors, customers should provide the required dimensions, thermal performance, electrical conditions, and installation environment. X-Meritan can help determine a suitable thermoelectric configuration.
